- 単位球面S2を考える
- S2上の任意の2点x,yについて、その2点を通る大円を定める
- 今、x,yの順序を考慮するとき、この大円は方向を持つ
- 方向を持つ大円は球面を進行方向右側半球面と進行方向左側半球面とに分ける
- 球面上の第3点zはこの大円上の点であるか、左右半球面上の点であるかの3つの場合に分かれる
- 今、球面上に3点x,y,zがあるとき、その順序 x,y,zを定めると、x,yが定める大円、y,zが定める大円、z,xが定める大円が囲む球面三角形の内部か、外側であるところの外部か、三角形上であるかの3通りに分かれる。その判定は、大円による左右半球判定のAND x AND判定かそれ以外かに分かれる
- これを組み合わせることで球面上の3点からスタートし、それが作る球面三角形2つのうちの1つの内部の点を二つv1,v2を作り、球面三角形の2頂点u1,u2を定めることで、二つの球面三角形v1,u1,u2、v2,u1,u2を作ることができ、どちらの三角形が今考えているところの球面三角形の「内部」という意味合いで大きいかが定まる
- 小さい方の三角形は三点を通る円周とし、大きい方も三角形にせず、その三点を結ぶ大円ではない円とすることで、オイラー三角分割ルールを守りながら、どんどん、分割を細かくすることができる
- ...はずである
- まずは下準備
- 球面上の2頂点を与えて、その大円弧を決める
- 球面上の3頂点を与えて、それを通る円弧を決める
library(onion)
library(rgl)
my.rsphere <- function(n){
ret <- matrix(rnorm(n*3),ncol=3)
ret/sqrt(apply(ret^2,1,sum))
}
my.3d2quart <- function(x){
if(is.vector(x)){
x <- matrix(x,nrow=1)
}
x[,1] * Hi + x[,2] * Hj + x[,3] * Hk
}
my.quart23d <- function(h){
t(as.matrix(Im(h))[2:4,])
}
my.greatcircle <- function(h1,h2){
h3 <- h1 * h2
theta <- acos(-Re(h3))
list(v=Im(h3),theta=theta,start=h1,end=h2)
}
my.circle.3pt.check <- function(h1,h2,h3){
h12 <- h2-h1
h23 <- h3-h2
M <- matrix(c(i(h12),j(h12),k(h12),i(h23),j(h23),k(h23),1,1,1),byrow=TRUE,3,3)
if(det(M)!=0){
a <- c(0,0,1)
tmp <- solve(M,a)
tmp <- tmp/sqrt(sum(tmp^2))
v <- (Hi*tmp[1] + Hj*tmp[2] + Hk*tmp[3])
if(-Re(v * (h12*h23)) < 0){
v <- Conj(v)
}
h1.tan <- h1 + Re(v*h1)*v
h2.tan <- h2 + Re(v*h2)*v
h3.tan <- h3 + Re(v*h3)*v
h1.tan <- h1.tan/Mod(Im(h1.tan))
h2.tan <- h2.tan/Mod(Im(h2.tan))
h3.tan <- h3.tan/Mod(Im(h3.tan))
h1h3 <- h1.tan*h3.tan
h1h2 <- h1.tan*h2.tan
theta <- acos(-Re(h1h3))
theta2 <- acos(-Re(h1h2))
re.h1h2 <- Re(h1h2)
tq.h1h3 <- -Re(h1h3*v)
tq.h1h2 <- -Re(h1h2*v)
if(tq.h1h3 < 0){
theta <- 2*pi-theta
}
if(tq.h1h2 < 0){
theta2 <- 2*pi-theta2
}
print(theta-theta2)
p <- list(v=v,theta=theta,start=h1,end=h3)
}else{
p <- my.greatcircle(h1,h3)
}
p
}
my.circle.3pt <- function(h1,h2,h3){
h12 <- h2-h1
h23 <- h3-h2
M <- matrix(c(i(h12),j(h12),k(h12),i(h23),j(h23),k(h23),1,1,1),byrow=TRUE,3,3)
if(det(M)!=0){
a <- c(0,0,1)
tmp <- solve(M,a)
tmp <- tmp/sqrt(sum(tmp^2))
v <- (Hi*tmp[1] + Hj*tmp[2] + Hk*tmp[3])
if(-Re(v * (h12*h23)) < 0){
v <- Conj(v)
}
h1.tan <- h1 + Re(v*h1)*v
h3.tan <- h3 + Re(v*h3)*v
h1.tan <- h1.tan/Mod(Im(h1.tan))
h3.tan <- h3.tan/Mod(Im(h3.tan))
h1h3 <- h1.tan*h3.tan
theta <- acos(-Re(h1h3))
tq.h1h3 <- -Re(h1h3*v)
if(tq.h1h3 < 0){
theta <- 2*pi-theta
}
p <- list(v=v,theta=theta,start=h1,end=h3)
}else{
p <- my.greatcircle(h1,h3)
}
p
}
my.circle.on.sph <- function(p,n=100,mint=0,maxt=1){
t <- seq(from=mint,to=maxt,length=n)
theta. <- p$theta*t
q <- cos(theta./2) + sin(theta./2) * (p$v)
q * p$start * Conj(q)
}
R <- my.rsphere(5000)
h1 <- my.3d2quart(my.rsphere(1))
h2 <- my.3d2quart(my.rsphere(1))
h3 <- my.3d2quart(my.rsphere(1))
p <- my.circle.3pt(h1,h2,h3)
p.gc <- my.circle.on.sph(p)
p.gc2 <- my.circle.on.sph(p,maxt=1000)
plot3d(R)
points3d(my.quart23d(p.gc),col=2,size=5)
points3d(my.quart23d(p.gc2),col=3,size=5)
points3d(my.quart23d(h1),col=4,size=10)
points3d(my.quart23d(h2),col=5,size=10)
points3d(my.quart23d(h3),col=2,size=10)
for(i in 1:1000){
h1 <- my.3d2quart(my.rsphere(1))
h2 <- my.3d2quart(my.rsphere(1))
h3 <- h1 * h2
h3 <- my.3d2quart(my.rsphere(1))
p <- my.circle.3pt.check(h1,h2,h3)
p.gc <- my.circle.on.sph(p)
}
- 球面上の三角形とは、この「球面弧」がタンデムに3つ並んで閉じたもののこと
- さらに球面上の三角形について向きを考慮に入れるとは、3弧の向きに整合性を入れ、その整合性のとれた向きに意味を持たせた上で、3球面弧の並び方によって定まるもののこと
- 球面に初めに3角形を多く時には、その3頂点をh1,h2,h3とすれば、h1->h2->h3と、h1->h3->h2という二つの三角形ができる。
- 球面三角形を定義するには…
my.tri.sphere <- function(h1,h2,h3){
a1 <- my.circle.3pt(h1,h2)
a2 <- my.circle.3pt(h1,h2)
a3 <- my.circle.3pt(h1,h2)
list(a1=a1,a2=a2,a3=a3)
}
h1 <- my.3d2quart(my.rsphere(1))
h2 <- my.3d2quart(my.rsphere(1))
h3 <- my.3d2quart(my.rsphere(1))
tri.1 <- my.tri.sphere(h1,h2,h3)
- 三角形の内外判定は、点と回転軸のなす角が辺上の点と回転軸のなす角より大きいか小さいかを3辺(3弧)について実施し、すべてで「より小さい」なら内部、それ以外は外部
my.tri.sphere <- function(h1,h2,h3){
a1 <- my.circle.3pt(h1,h2)
a2 <- my.circle.3pt(h2,h3)
a3 <- my.circle.3pt(h3,h1)
list(a1=a1,a2=a2,a3=a3)
}
my.check.inside <- function(v,tri){
ret <- matrix(0,length(v),length(tri))
for(i in 1:length(tri)){
tmp.v <- tri[[i]]$v
tmp.h <- tri[[i]]$start
tmp.ip <- -Re(tmp.v * tmp.h)
current.ip <- -Re(tmp.v * v)
ret[,i] <- sign(current.ip)
}
ret
}

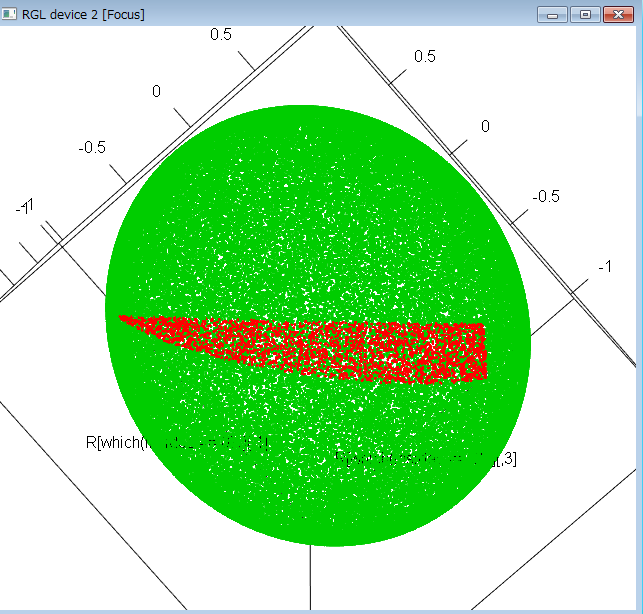

R <- my.rsphere(100000)
h1 <- my.3d2quart(my.rsphere(1))
h2 <- my.3d2quart(my.rsphere(1))
h3 <- my.3d2quart(my.rsphere(1))
tri.1 <- my.tri.sphere(h1,h2,h3)
inout <- my.check.inside(my.3d2quart(R),tri.1)
insides <- apply((inout-1)^2,1,sum)
plot3d(R[which(insides==0),],col=2)
points3d(R[which(insides!=0),],col=3)
- 球面三角形の内側判定が今一つうまく行かないが、仮のソース
library(onion)
library(rgl)
my.rsphere <- function(n){
ret <- matrix(rnorm(n*3),ncol=3)
ret/sqrt(apply(ret^2,1,sum))
}
my.3d2quart <- function(x){
if(is.vector(x)){
x <- matrix(x,nrow=1)
}
x[,1] * Hi + x[,2] * Hj + x[,3] * Hk
}
my.quart23d <- function(h){
t(as.matrix(Im(h))[2:4,])
}
my.greatcircle <- function(h1,h2){
h3 <- -h1 * h2
theta <- acos(-Re(h3))
list(v=Im(h3),theta=theta,start=h1,end=h2)
}
my.circle.3pt.check <- function(h1,h2,h3){
h12 <- h2-h1
h23 <- h3-h2
M <- matrix(c(i(h12),j(h12),k(h12),i(h23),j(h23),k(h23),1,1,1),byrow=TRUE,3,3)
if(det(M)!=0){
a <- c(0,0,1)
tmp <- solve(M,a)
tmp <- tmp/sqrt(sum(tmp^2))
v <- (Hi*tmp[1] + Hj*tmp[2] + Hk*tmp[3])
if(-Re(v * (h12*h23)) < 0){
v <- Conj(v)
}
h1.tan <- h1 + Re(v*h1)*v
h2.tan <- h2 + Re(v*h2)*v
h3.tan <- h3 + Re(v*h3)*v
h1.tan <- h1.tan/Mod(Im(h1.tan))
h2.tan <- h2.tan/Mod(Im(h2.tan))
h3.tan <- h3.tan/Mod(Im(h3.tan))
h1h3 <- h1.tan*h3.tan
h1h2 <- h1.tan*h2.tan
theta <- acos(-Re(h1h3))
theta2 <- acos(-Re(h1h2))
re.h1h2 <- Re(h1h2)
tq.h1h3 <- -Re(h1h3*v)
tq.h1h2 <- -Re(h1h2*v)
if(tq.h1h3 < 0){
theta <- 2*pi-theta
}
if(tq.h1h2 < 0){
theta2 <- 2*pi-theta2
}
print(theta-theta2)
p <- list(v=v,theta=theta,start=h1,end=h3)
}else{
p <- my.greatcircle(h1,h3)
}
p
}
my.circle.3pt <- function(h1,h2,h3=h2){
h12 <- h2-h1
h23 <- h3-h2
M <- matrix(c(i(h12),j(h12),k(h12),i(h23),j(h23),k(h23),1,1,1),byrow=TRUE,3,3)
if(det(M)!=0){
a <- c(0,0,1)
tmp <- solve(M,a)
tmp <- tmp/sqrt(sum(tmp^2))
v <- (Hi*tmp[1] + Hj*tmp[2] + Hk*tmp[3])
if(-Re(v * (h12*h23)) < 0){
v <- Conj(v)
}
h1.tan <- h1 + Re(v*h1)*v
h3.tan <- h3 + Re(v*h3)*v
h1.tan <- h1.tan/Mod(Im(h1.tan))
h3.tan <- h3.tan/Mod(Im(h3.tan))
h1h3 <- h1.tan*h3.tan
theta <- acos(-Re(h1h3))
tq.h1h3 <- -Re(h1h3*v)
if(tq.h1h3 < 0){
theta <- 2*pi-theta
}
p <- list(v=v,theta=theta,start=h1,end=h3)
}else{
p <- my.greatcircle(h1,h3)
}
p
}
my.circle.on.sph <- function(p,n=100,mint=0,maxt=1){
t <- seq(from=mint,to=maxt,length=n)
theta. <- p$theta*t
q <- cos(theta./2) + sin(theta./2) * (p$v)
q * p$start * Conj(q)
}
R <- my.rsphere(5000)
h1 <- my.3d2quart(my.rsphere(1))
h2 <- my.3d2quart(my.rsphere(1))
h3 <- h1 * h2
h3 <- my.3d2quart(my.rsphere(1))
p <- my.circle.3pt(h1,h2,h3)
p.gc <- my.circle.on.sph(p)
p.gc2 <- my.circle.on.sph(p,maxt=1000)
plot3d(R)
points3d(my.quart23d(p.gc),col=2,size=5)
points3d(my.quart23d(p.gc2),col=3,size=5)
points3d(my.quart23d(h1),col=4,size=10)
points3d(my.quart23d(h2),col=5,size=10)
points3d(my.quart23d(h3),col=2,size=10)
for(i in 1:100){
h1 <- my.3d2quart(my.rsphere(1))
h2 <- my.3d2quart(my.rsphere(1))
h3 <- h1 * h2
h3 <- my.3d2quart(my.rsphere(1))
p <- my.circle.3pt.check(h1,h2,h3)
p.gc <- my.circle.on.sph(p)
}
my.tri.sphere.old <- function(h1,h2,h3){
a1 <- my.circle.3pt(h1,h3,h2)
a2 <- my.circle.3pt(h2,h3)
a3 <- my.circle.3pt(h3,h1)
list(a1=a1,a2=a2,a3=a3)
}
my.tri.sphere <- function(h1,h2,h3){
tmp <- my.circle.3pt(h1,h2,h3)
tmp2 <- my.circle.3pt(h2,h3,h1)
tmp3 <- my.circle.3pt(h3,h1,h2)
a1 <- list(v=tmp$v,theta=2*pi-tmp2$theta,start=h1,end=h2)
a2 <- list(v=tmp$v,theta=2*pi-tmp3$theta,start=h2,end=h3)
a3 <- list(v=tmp$v,theta=2*pi-tmp$theta,start=h3,end=h1)
list(a1=a1,a2=a2,a3=a3)
}
my.check.inout <- function(v,tri){
ret <- matrix(0,length(v),length(tri))
for(i in 1:length(tri)){
tmp.v <- tri[[i]]$v
tmp.h <- tri[[i]]$start
tmp.ip <- -Re(tmp.v * tmp.h)
current.ip <- -Re(tmp.v * v)
ret[,i] <- sign(current.ip-tmp.ip)
}
ret
}
my.check.inout.ng <- function(v,tri){
tmp <- (tri[[1]]$end-tri[[1]]$start) * (tri[[3]]$start - tri[[3]]$end)
ctr <- (tri[[1]]$start+tri[[2]]$start+tri[[3]]$start)/3
sign(Re(tmp * v-ctr))
}
my.check.inside.ng <- function(v,tri){
inout <- my.check.inout(v,tri)
which(inout>0)
}
my.check.inside <- function(v,tri){
inout <- my.check.inout(v,tri)
insides <- apply((inout-1)^2,1,sum)
which(insides==0)
}
my.arc.inv <- function(a){
ret <- list(v=Conj(a$v),theta=a$theta,start=a$end,end=a$start)
}
R <- my.rsphere(100000)
h1 <- my.3d2quart(my.rsphere(1))
h2 <- my.3d2quart(my.rsphere(1))
h3 <- my.3d2quart(my.rsphere(1))
h1 <- Hi
h2 <- Hj
h3 <- Hk
tri.1 <- my.tri.sphere(h1,h2,h3)
tri.2 <- my.tri.sphere(h1,h3,h2)
inout <- my.check.inout(my.3d2quart(R),tri.1)
inout2 <- my.check.inout(my.3d2quart(R),tri.2)
insides <- apply((inout-1)^2,1,sum)
ins <- my.check.inside(my.3d2quart(R),tri.1)
ins2 <- my.check.inside(my.3d2quart(R),tri.2)
plot3d(R[ins,],col=2)
points3d(R[-ins,],col=3)
plot3d(R[which(insides==0),],col=2)
points3d(R[which(insides!=0),],col=3)
my.arc.length <- function(p){
tmp.v <- p$v
tmp.h <- p$start
tmp.ip <- -Re(tmp.v * tmp.h)
h <- tmp.h - tmp.ip*tmp.v
p$theta * Mod(h)
}
my.make.euler.tri <- function(n,m=1000){
tris <- list()
h.three <- my.3d2quart(my.rsphere(3))
col <- c(1,2)
tris[[1]] <- my.tri.sphere(h.three[1],h.three[2],h.three[3])
tris[[2]] <- my.tri.sphere(h.three[1],h.three[3],h.three[2])
for(i in 2:n){
select.tri <- sample(1:length(tris),1)
selected.tri <- tris[[select.tri]]
selected.col <- col[select.tri]
loop <- TRUE
while(loop){
R <- my.3d2quart(my.rsphere(m))
ins <- my.check.inside(R,selected.tri)
if(length(ins)>1){
ss <- sample(ins,2)
tmp1 <- R[ss[1]]
tmp2 <- R[ss[2]]
loop <- FALSE
select.arc <- sample(1:3,1)
selected.arc <- selected.tri[[select.arc]]
st <- selected.arc$start
ed <- selected.arc$end
circle1 <- my.tri.sphere(st,tmp1,ed)
circle2 <- my.tri.sphere(st,tmp2,ed)
a1st <- circle1$a1
a1ed <- circle1$a2
a2st <- circle2$a1
a2ed <- circle2$a2
a1st.len <- my.arc.length(a1st)
a1ed.len <- my.arc.length(a1ed)
a2st.len <- my.arc.length(a2st)
a2ed.len <- my.arc.length(a2ed)
outer <- tmp1
inner <- tmp2
if(a1st.len + a1ed.len < a2st.len + a2ed.len){
outer <- tmp2
inner <- tmp1
}
new.a1 <- my.circle.3pt(st,outer,ed)
a2 <- my.tri.sphere(ed,inner,st)
old.a <- tris[[select.tri]][[select.arc]]
tris[[select.tri]][[select.arc]] <- new.a1
new.tri1 <- list(a1=my.arc.inv(a2$a1),a2=my.arc.inv(a2$a1),a3=my.arc.inv(a2$a2))
new.tri2 <- list(a1=old.a,a2=a2$a1,a3=a2$a2)
n.tri <- length(tris)
tris[[n.tri+1]] <- new.tri1
tris[[n.tri+2]] <- new.tri2
if(selected.col==1){
col[n.tri+1] <- 2
col[n.tri+2] <- 1
}else{
col[n.tri+1] <- 1
col[n.tri+2] <- 2
}
}
}
}
list(tris=tris,col=col)
}
my.plot.euler.tri <- function(tris,col,n=10000){
R <- my.3d2quart(my.rsphere(n))
x <- matrix(0,n,length(tris))
for(i in 1:length(tris)){
tmp.ins <- my.check.inside(R,tris[[i]])
x[tmp.ins,i] <- 1
}
R3d <- my.quart23d(R)
for(i in 1:length(tris)){
if(i==1){
plot3d(R3d[which(x[,i]==1),],col=i+1)
}
points3d(R3d[which(x[,i]==1),],col=i+1)
}
x
}
ttt <- my.make.euler.tri(6)
apply(x,1,sum)
for(i in 1:length(ttt$tris)){
for(j in 1:3){
print(ttt$tris[[i]][[j]]$start)
print(ttt$tris[[i]][[j]]$end)
}
}
ttt <- my.make.euler.tri(20)
tmpout <- my.plot.euler.tri(ttt$tris,ttt$col,n=100000)
