- 共形変換というのがある
- 複素関数の分数を使って座標変換する
- 「円」が「円」に移される変換
- こちらに色々な複素関数の変換がある
- とかとかだと、円にくびれを入れることができる
- それは発生における脊索形成とかに擬せられる
- こちらでやった、渦とpivot transformationよりシンプル(pivot transformationが共形変換の言葉で表現できる可能性はあるが…)
- やってみる
- まず、4次元空間の指数関数的増大円筒が卵に射影されることをやったが、その卵の長軸について、円をくびれさせる共形変換の原点を変化させて作ったのが以下
library(rgl)
f1 <- function(X){
z <- X[,1] + 1i * X[,2]
return(1/z)
}
f2 <- function(X,a){
b <- Re(a) - 1i * Im(a)
z <- X[,1] + 1i * X[,2]
return((z-a)/(1-z*b))
}
f3 <- function(X){
b <- Re(a) - 1i * Im(a)
z <- X[,1] + 1i * X[,2]
return(1/2*z^2)
}
q <- 1
d <- 0.9
k <- 0.6
p <- 0
Q <- diag(rep(1,2))*10^(-4)
shift <- c(0,0)
lambdas <- c(d,-1,0+q*1i,0-q*1i )
V <- matrix(c(1,0,0,0,0,1,0,0,0,0,1,-1i*1,0,0,1,1i*1),4,4)
M <- matrix(c(1,-1,0,0,0,0,1,0,0,0,0,1,1,1,p,0),byrow=TRUE,4,4)
x.init <- rep(1,4)
x.init[3:4] <- x.init[3:4]*k
t <- seq(from=-30,to=30,length=500)
X <- matrix(0,length(t),4)
for(i in 1:4){
X[,i] <- x.init[i] * exp(lambdas[i]*t)
}
X. <- Re(t(V%*% t(X)))
phis <- seq(from=0,to=1,length=100)*2*pi
Y.all <- matrix(0,0,3)
for(ii in 1:length(phis)){
Rot <- matrix(c(cos(phis[ii]),sin(phis[ii]),-sin(phis[ii]),cos(phis[ii])),2,2)
X.2 <- X.
X.2[,3:4] <- t(Rot %*% t(X.2[,3:4]))
X.. <- t(M %*% t(X.2))
Y <- X..[,1:3]/X..[,4]
Y.all <- rbind(Y.all,Y)
}
Y.all.emb <- Y.all
qs <- seq(from=0.6,to=1,by=0.1)
q2s <- seq(from=0.3,to=1.1,by=0.2)
embs <- list()
cnt <- 1
for(i in 1:length(qs)){
for(j in 1:length(q2s)){
q <- qs[i]
q2 <- q2s[j]
tmp.emb <- Y.all
for(ii in 1:length(Y.all[,1])){
ctr <- q*Y.all.emb[ii,1] + q2
tmp.v <- Y.all.emb[ii,2:3]
tmp.v2 <- f3(matrix(tmp.v-c(ctr,0),nrow=1))
tmp.v3 <- c(Re(tmp.v2),Im(tmp.v2))
tmp.emb[ii,2:3] <- tmp.v3 +c(ctr,0)
}
tmp.emb[,1] <- tmp.emb[,1]+i*2
tmp.emb[,3] <- tmp.emb[,3]+j*2
embs[[cnt]] <- tmp.emb
plot3d(my3Dstandard(embs[[cnt]]),type="l")
cnt <- cnt + 1
}
}
my3Dstandard <- function(x){
rbind(x,rep(min(x),length(x[1,])),rep(max(x),length(x[1,])))
}
EMB <- matrix(0,0,3)
for(i in 1:length(embs)){
current.emb <- embs[[i]]
plot3d(my3Dstandard(embs[[i]]),type="l")
EMB <- rbind(EMB,current.emb)
}
plot3d(my3Dstandard(EMB),type="l")
q <- 0.3
q2 <- 0.4
for(i in 1:length(Y.all[,1])){
ctr <- q*Y.all.emb[i,1] + q2
tmp.v <- Y.all.emb[i,2:3]
tmp.v2 <- f3(matrix(tmp.v-c(ctr,0),nrow=1))
tmp.v3 <- c(Re(tmp.v2),Im(tmp.v2))
Y.all.emb[i,2:3] <- tmp.v3 +c(ctr,0)
}
col <- rep(1,length(Y.all[,1]))
minY <- min(Y.all)
maxY <- max(Y.all)
plot3d(rbind(Y.all,rbind(rep(minY,3),rep(maxY,3))),col=c(col,rep(2,2)),type="l")
Y.all.emb. <- Y.all.emb
Y.all.emb. <- rbind(Y.all.emb,rep(min(Y.all.emb),3))
Y.all.emb. <- rbind(Y.all.emb,rep(max(Y.all.emb),3))
plot3d(Y.all.emb.,type="l")
x <- y <- seq(from=-1,to=1,length=100)
xy <- expand.grid(x,y)
R <- sqrt(apply(xy^2,1,sum))
col <- round(R*5)+1
f1 <- function(X){
z <- X[,1] + 1i * X[,2]
return(1/z)
}
out.f1 <- f1(xy)
par(mfcol=c(1,2))
plot(xy,col=col,pch=20)
plot(Re(out.f1),Im(out.f1),col=col,pch=20,xlim = c(-3,3),ylim=c(-3,3))
par(mfcol=c(1,1))
f2 <- function(X,a){
b <- Re(a) - 1i * Im(a)
z <- X[,1] + 1i * X[,2]
return((z-a)/(1-z*b))
}
f3 <- function(X){
b <- Re(a) - 1i * Im(a)
z <- X[,1] + 1i * X[,2]
return(1/2*z^2)
}
x <- y <- seq(from=-5,to=5,length=100)
xy <- as.matrix(expand.grid(x,y))
t <- seq(from=0,to=1,length=1000)*2*pi
ctr <- c(0.6,0.8)
rr <- seq(from=0.3,to=1.9,by=0.1)
X <- Y <- c()
for(i in 1:length(rr)){
tmpX <- rr[i] * cos(t)+ctr[1]
tmpY <- rr[i] * sin(t)+ctr[2]
X <- c(X,tmpX)
Y <- c(Y,tmpY)
}
R <- sqrt(apply(xy^2,1,sum))
s <- which(R <= max(x)/sqrt(2))
xy <- xy[s,]
col <- floor(R[s]*5)+2
col <- c(col,rep(1,length(X)))

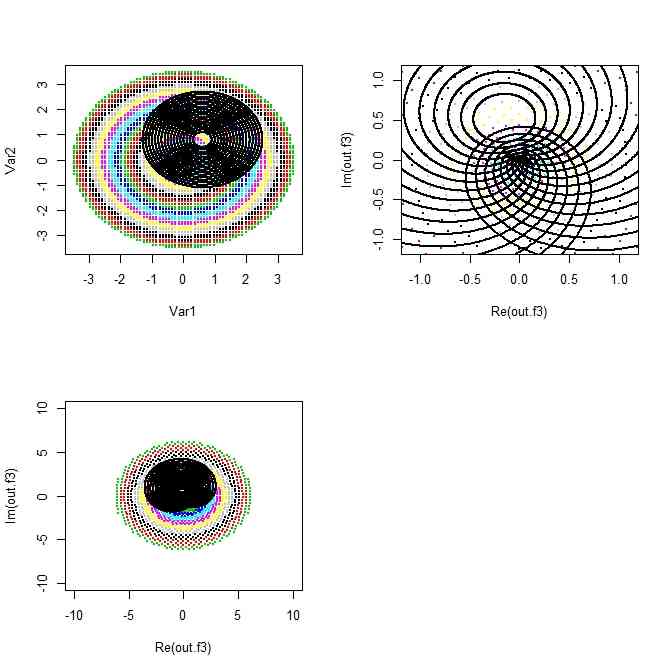

a <- -0.5 - 1i * 0.5
out.f2 <- f2(rbind(xy,cbind(X,Y)),a)
out.f3 <- f3(rbind(xy,cbind(X,Y)))
par(mfcol=c(2,2))
plot(rbind(xy,cbind(X,Y)),col=col,pch=20,cex=0.3)
plot(Re(out.f3),Im(out.f3),col=col,pch=20,xlim = c(-10,10),ylim=c(-10,10),cex=0.3)
plot(Re(out.f3),Im(out.f3),col=col,pch=20,xlim = c(-1.1,1.1),ylim=c(-1.1,1.1),cex=0.3)
par(mfcol=c(1,1))
