SpinXFormを使ってみる

make
  • して
./spinxform ./examples/bumpy/sphere.obj ./examples/bumpy/bumpy.tga ./examples/bumpy/testout.obj
  • というような使い方をすることで、sphere.obj(頂点3次元座標がv始まりの行で、それに引き続いて頂点IDの3つ組の行がf始まりで続いているファイル)を読み込み(これは球形の三角メッシュ)、それにbumpy.tgaなるグレースケールファイルを指定することで、その値から曲がり具合を受け取って、変形した後のobjファイルを吐き出してくれる
  • Macなどでは、objファイルとtgaファイルをその順序でファイル読み込みすることで、ぐりぐり動かせる3次元プロットを見せるGUIが立ち上がる
  • さて、興味があるのは、この変形変換
  • その結果をRでも表示できるようにしてみよう

library(Matrix)
library(onion)
library(rgl)
library(Ronlyryamada) # devtools::install_github("ryamada22/Ronlyryamada")
my.read.obj <- function(f){
	tmp <- read.delim(f,header=FALSE,sep=" ")
	vf <- tmp$V1
	n.v <- length(which(vf=="v"))
	n.f <- length(which(vf=="f"))

	xyz <- as.matrix(tmp[1:n.v,2:4])
	faces.v <- as.matrix(tmp[(n.v+1):(n.v+n.f),2:4])
	xyz.q <- xyz[,1]*Hi+xyz[,2]*Hj+xyz[,3]*Hk
	return(list(xyz=xyz,xyz.q=xyz.q,faces.v=faces.v))
}


my.mesh.tri.plot <- function(vertices,faces.v,rho.f=NULL){
	if(is.null(rho.f)){
		rho.cot <- my.curvature.cot(vertices,faces.v)
		rho.f <- rho.cot[[3]] * Mod(Im(rho.cot[[2]]))
	}
	xyz <- as.matrix(vertices)[2:4,]
	plot3d(t(xyz))
	mesh.tri <- tmesh3d(xyz,faces.v,homogeneous=FALSE)
	rho.f <- rho.cot[[3]] * Mod(Im(rho.cot[[2]]))
	rho.f <- rep(rho.f,each=3)
	rho.f1 <- rho.f2 <- rep(0,length(rho.f))
	rho.f1[which(rho.f>0)] <- rho.f[which(rho.f>0)]
	rho.f2[which(rho.f<0)] <- -rho.f[which(rho.f<0)]
	#col2 <- rgb(rho.f1/max(rho.f1),rho.f2/max(rho.f2),0.5)
	red <- rep(0,length(rho.f))
	green <- rep(0,length(rho.f))
	if(max(rho.f1)!=0){
		red <- rho.f1/max(rho.f1)
	}
	if(max(rho.f2)!=0){
		green <- rho.f2/max(rho.f2)
	}
	col2 <- rgb(red,green,0.5)
	shade3d(mesh.tri,col=col2)
}

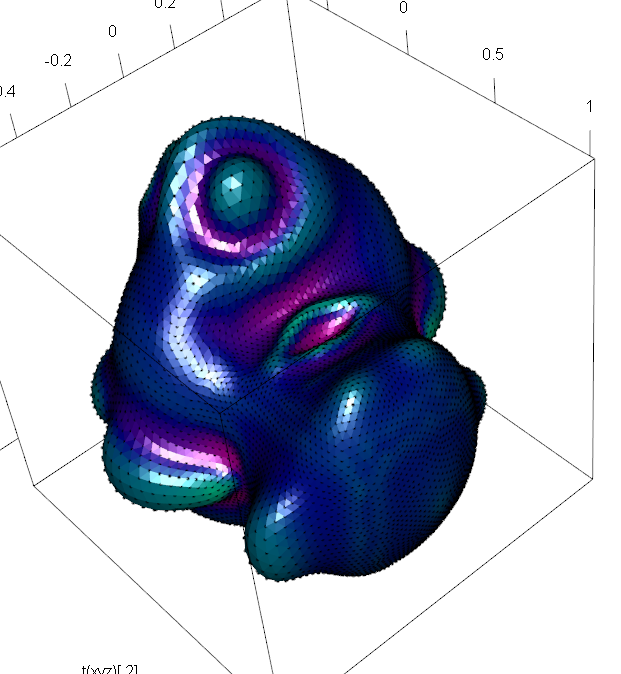

f <- "reference_solution.obj"

obj <- my.read.obj(f)
my.mesh.tri.plot(obj$xyz.q,t(obj$faces.v))
