地図をいじる
- こちらでCartogramのことを書いた
- その延長線上で地図も描きたい
- ただ描くのではなくて、座標がほしい
- RのGEOmapパッケージは緯度・経度を指定して地図描図法も指定して地図を表示してくれる関数plotGEOmap()を提供しているのだが、「座標がほしい！」ということで、その関数を以下のように改変(my.retという変数に関する行だけを加えたもの。関数の全部はわからないけれど、座標っぽいところを変数に入れて返り値にしてみたらうまく行った)
my.plotGEOmapXY <- function (MAP, LIM = c(-180, -90, 180, 90), PROJ = list(), PMAT = NULL, add = TRUE, SEL = NULL, GRID = NULL, GRIDcol = 1, MAPcol = NULL, MAPstyle = NULL, border = NA, cenlon = 0, shiftlon = 0, linelty = 1, linelwd = 1, ptpch = ".", ptcex = 1, NUMB = FALSE, ...) { if (missing(cenlon)) { cenlon = 0 } if (missing(GRID)) { GRID = NULL } if (missing(GRIDcol)) { GRIDcol = 1 } if (missing(PMAT)) { PMAT = NULL } if (missing(SEL)) { SEL = NULL } if (missing(linelty)) { linelty = 1 } if (missing(NUMB)) { NUMB = FALSE } if (missing(linelwd)) { linelwd = 1 } if (missing(ptpch)) { ptpch = "." } if (missing(ptcex)) { ptcex = 1 } if (missing(MAPcol)) { MAPcol = NULL } if (missing(MAPstyle)) { MAPstyle = NULL } if (missing(border)) { border = NA } if (missing(shiftlon)) { shiftlon = 0 } pctexp = 0.01 if (missing(LIM)) { lon = RPMG::fmod(MAP$POINTS$lon - shiftlon, 360) RLON = expandbound(range(RPMG::fmod(MAP$POINTS$lon, 360)), pctexp) RLAT = expandbound(range(MAP$POINTS$lat), pctexp) LIM = c(RLON[1], RLAT[1], RLON[2], RLAT[2]) } else { if (is.null(LIM)) { RLON = expandbound(range(RPMG::fmod(MAP$POINTS$lon, 360)), pctexp) RLAT = expandbound(range(MAP$POINTS$lat), pctexp) LIM = c(RLON[1], RLAT[1], RLON[2], RLAT[2]) } if (is.list(LIM)) { lon = RPMG::fmod(LIM$lon - shiftlon, 360) lat = LIM$lat LIM = c(min(RPMG::fmod(lon, 360)), min(lat), max(fmod(lon, 360)), max(lat)) } } LLlim = list(lat = LIM[c(2, 4)], lon = LIM[c(1, 3)]) if (missing(PROJ)) { MAPCENLAT = mean(LLlim$lat) MAPCENLON = median(LLlim$lon) PROJ = setPROJ(type = 2, LAT0 = MAPCENLAT, LON0 = MAPCENLON, LATS = NULL, LONS = NULL, DLAT = NULL, DLON = NULL, FN = 0) } if (missing(add)) { add = FALSE } if (is.null(MAP$POINTS$z)) { MAP$POINTS$z = rep(0, length(MAP$POINTS$lat)) } if (is.null(MAP$POINTS$x)) { MAPXY = GLOB.XY(MAP$POINTS$lat, RPMG::fmod(MAP$POINTS$lon - shiftlon, 360), PROJ) MAXDISTX = max(MAPXY$x) - min(MAPXY$x) if (is.null(PMAT)) { MAP$POINTS$x = MAPXY$x MAP$POINTS$y = MAPXY$y } else { tem = trans3d(MAPXY$x, MAPXY$y, MAP$POINTS$z, PMAT) MAP$POINTS$x = tem$x MAP$POINTS$y = tem$y } STRKXYLL = GLOB.XY(MAP$STROKES$LAT1, RPMG::fmod(MAP$STROKES$LON1 - shiftlon, 360), PROJ) STRKXYUR = GLOB.XY(MAP$STROKES$LAT2, RPMG::fmod(MAP$STROKES$LON2 - shiftlon, 360), PROJ) STRKXYUL = GLOB.XY(MAP$STROKES$LAT2, RPMG::fmod(MAP$STROKES$LON1 - shiftlon, 360), PROJ) STRKXYLR = GLOB.XY(MAP$STROKES$LAT1, RPMG::fmod(MAP$STROKES$LON2 - shiftlon, 360), PROJ) if (is.null(PMAT)) { MAP$STROKES$x1 = STRKXYLL$x MAP$STROKES$y1 = STRKXYLL$y } else { tem = trans3d(STRKXYLL$x, STRKXYLL$y, rep(0, length(STRKXYLL$y)), PMAT) MAP$STROKES$x1 = tem$x MAP$STROKES$y1 = tem$y } if (is.null(PMAT)) { MAP$STROKES$x2 = STRKXYUR$x MAP$STROKES$y2 = STRKXYUR$y } else { tem = trans3d(STRKXYUR$x, STRKXYUR$y, rep(0, length(STRKXYUR$y)), PMAT) MAP$STROKES$x2 = tem$x MAP$STROKES$y2 = tem$y } } XYLIM = GLOB.XY(LLlim$lat, LLlim$lon, PROJ) LLlim$x = XYLIM$x LLlim$y = XYLIM$y xrange = abs(diff(range(LLlim$x, na.rm = TRUE))) yrange = abs(diff(range(LLlim$y, na.rm = TRUE))) Kstroke = length(MAP$STROKES$num) FORCE = FALSE if (!is.null(SEL)) { if (length(SEL) < 0) { FORCE = TRUE SEL = 1:length(MAP$STROKES$num) } } if (FORCE == FALSE) { IN = KINOUT(MAP, LLlim, projtype = 2) } else { IN = 1:length(MAP$STROKES$num) } if (!is.null(SEL)) { slin = which(IN %in% SEL) if (length(slin) >= 1) { IN = IN[slin] } } minx = Inf maxx = -Inf miny = Inf maxy = -Inf if (length(IN) < 1) { print("No map strokes in target") return(0) } for (i in IN) { j1 = MAP$STROKES$index[i] + 1 j2 = j1 + MAP$STROKES$num[i] - 1 if (j1 > 0 & j2 > 0 & j2 - j1 >= 0) { JEC = j1:j2 x = MAP$POINTS$x[JEC] y = MAP$POINTS$y[JEC] x[x < LLlim$x[1] | x > LLlim$x[2]] = NA y[y < LLlim$y[1] | y > LLlim$y[2]] = NA minx = min(c(minx, x), na.rm = TRUE) maxx = max(c(maxx, x), na.rm = TRUE) miny = min(c(miny, y), na.rm = TRUE) maxy = max(c(maxy, y), na.rm = TRUE) } else { next } } if (!is.null(MAPcol)) { MAP$STROKES$col = rep(MAPcol, length = length(MAP$STROKES$col)) } if (!is.null(MAPstyle)) { MAP$STROKES$style = rep(MAPstyle, length = length(MAP$STROKES$style)) } if (add == FALSE) { plot(range(LLlim$x), range(LLlim$y), asp = 1, type = "n", ...) } if (!is.null(GRID)) { addLLXY(GRID$lats, GRID$lons, PMAT = PMAT, GRIDcol = GRIDcol, LABS = 0, BORDER = 0, PROJ = PROJ) } my.ret <- matrix(0,0,2) for (i in IN) { j1 = MAP$STROKES$index[i] + 1 j2 = j1 + MAP$STROKES$num[i] - 1 if ((j1 > 0 & j2 > 0 & j2 - j1 >= 0)) { JEC = j1:j2 } else { next } if (NUMB == TRUE) { points(MAP$POINTS$x[j1], MAP$POINTS$y[j1]) my.ret <- rbind(my.ret,cbind(MAP$POINTS$x[j1], MAP$POINTS$y[j1])) text(MAP$POINTS$x[j1], MAP$POINTS$y[j1], labels = i, pos = 3) } if (MAP$STROKES$style[i] == 1) { points(MAP$POINTS$x[JEC], MAP$POINTS$y[JEC], col = MAP$STROKES$col[i], pch = ptpch, cex = ptcex) my.ret <- rbind(my.ret,cbind(MAP$POINTS$x[JEC], MAP$POINTS$y[JEC])) } if (MAP$STROKES$style[i] == 2) { x = MAP$POINTS$x[JEC] y = MAP$POINTS$y[JEC] my.ret <- rbind(my.ret,cbind(x,y)) xd = abs(diff(c(x, x[1]))) wwx = which(xd > 0.9 * xrange) yd = abs(diff(c(y, y[1]))) wwy = which(yd > 0.8 * yrange) if ((!is.null(wwx) & length(wwx) > 0) | (!is.null(wwy) & length(wwy) > 0)) { if (length(wwx) > 0) { zy = insertNA(y, wwx) zx = insertNA(x, wwx) lines(zx, zy, col = MAP$STROKES$col[i], lty = linelty, lwd = linelwd) #my.ret <- rbind(my.ret,cbind(zx,zy)) } if (length(wwy) > 0) { zy = insertNA(y, wwy) zx = insertNA(x, wwy) lines(zx, zy, col = MAP$STROKES$col[i], lty = linelty, lwd = linelwd) #my.ret <- rbind(my.ret,cbind(zx,zy)) } } else { x[MAP$POINTS$x[JEC] < LLlim$x[1] | MAP$POINTS$x[JEC] > LLlim$x[2]] = NA y[MAP$POINTS$y[JEC] < LLlim$y[1] | MAP$POINTS$y[JEC] > LLlim$y[2]] = NA lines(x, y, col = MAP$STROKES$col[i], lty = linelty, lwd = linelwd) } } if (MAP$STROKES$style[i] == 3) { x = MAP$POINTS$x[JEC] y = MAP$POINTS$y[JEC] x = c(x, x[1]) y = c(y, y[1]) x[MAP$POINTS$lon[JEC] < LLlim$lon[1] | MAP$POINTS$lon[JEC] > LLlim$lon[2]] = NA y[MAP$POINTS$lat[JEC] < LLlim$lat[1] | MAP$POINTS$lat[JEC] > LLlim$lat[2]] = NA polygon(x, y, border = border, col = MAP$STROKES$col[i]) my.ret <- rbind(my.ret,cbind(x,y)) } } invisible(IN) return(my.ret) } #<environment: namespace:GEOmap>

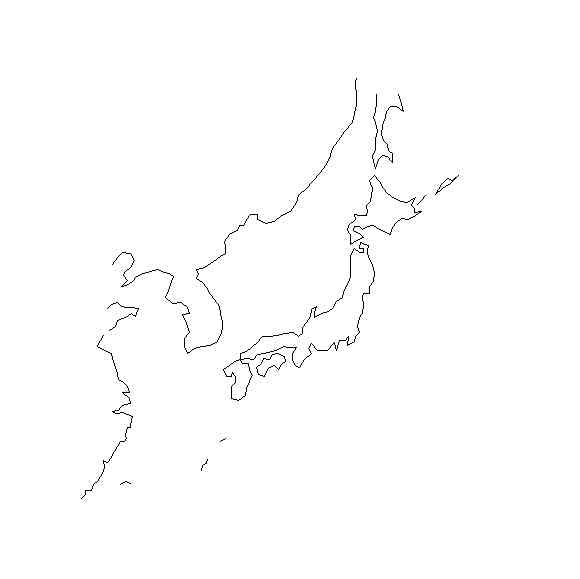

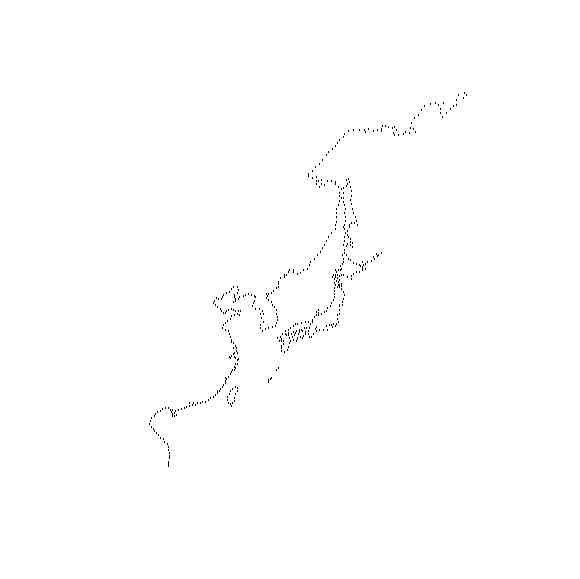

library(geomapdata) data(worldmap) KAMlat = c(25, 50) KAMlon = c(120, 150) PLOC=list(LON=KAMlon,LAT=KAMlat) PLON = seq(from=KAMlon[1], to=KAMlon[2], by=2) PLAT = seq(from=KAMlat[1], to=KAMlat[2], by=2) proj = setPROJ(1, LON0=mean(KAMlon), LAT0=mean(KAMlat)) xy = GLOB.XY(KAMlat, KAMlon , proj) kbox=list(x=range(xy$x, na.rm=TRUE), y=range(xy$y, na.rm=TRUE)) plot(kbox$x,kbox$y, type='n', axes=FALSE, xlab="", ylab="", asp=1) #plotGEOmapXY(worldmap, LIM=c(KAMlon[1], KAMlat[1], KAMlon[2],KAMlat[2]), add=TRUE, PROJ=proj, axes=FALSE, xlab="", ylab="" ) mmm <- my.plotGEOmapXY(worldmap, LIM=c(KAMlon[1], KAMlat[1], KAMlon[2],KAMlat[2]), add=TRUE, PROJ=proj, axes=FALSE, xlab="", ylab="" ) dev.new() plot(mmm,cex=0.01,axes=FALSE, xlab="", ylab="", asp=1)

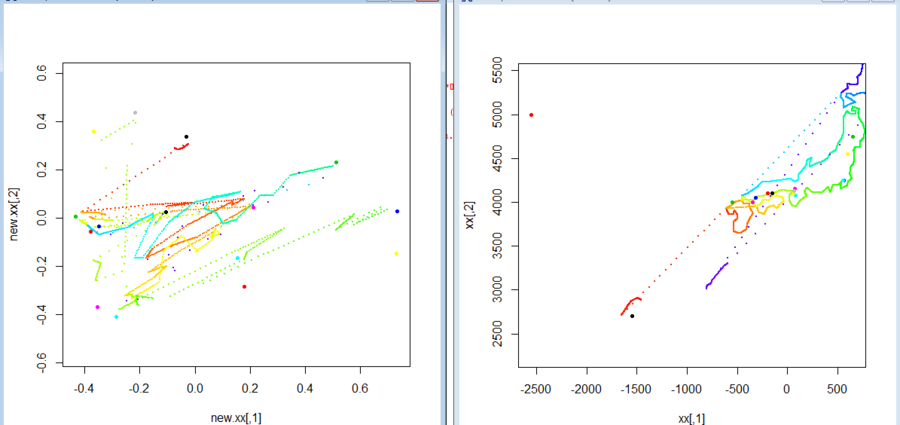

- 地図座標が得られたので、標本の出身地を地図上座標として取り、また、標本の属性からMDSを経由して属性に関する座標をとり、それに基づいて地図を歪めて見る
- データがよいものではないのでむちゃくちゃだが、処理を残しておく、ということで
# こんなデータ。１５標本。４尺度 > seyana.data.1 奈良 高槻 大阪 吹田 1 0.3 0.70 0.8 0.8 2 0.7 0.70 0.5 0.2 3 0.5 0.20 0.8 0.3 4 0.9 0.90 0.7 0.7 5 1.0 0.98 0.4 0.5 6 1.0 1.00 0.4 0.6 7 0.9 0.70 1.0 0.9 8 0.8 0.50 0.9 1.0 9 0.7 0.70 0.6 0.7 10 0.8 0.90 0.5 0.9 11 0.9 0.99 0.8 0.7 12 0.4 0.10 0.5 0.2 13 0.6 0.50 0.2 0.7 14 0.8 0.40 0.7 0.4 15 0.5 0.10 0.3 0.2 # １５標本の地図座標 > seyana.coords V1 V2 1 -1550 2700 2 -2550 5000 3 650 4750 4 -320 4050 5 80 4080 6 70 4150 7 60 4100 8 65 4125 9 -150 4100 10 -200 4100 11 -550 4000 12 560 4250 13 550 4250 14 -350 4000 15 600 4550 # ここから処理 # geomapdataから、日本付近の座標を取り出す library(geomapdata) data(worldmap) KAMlat = c(25, 50) KAMlon = c(120, 150) PLOC=list(LON=KAMlon,LAT=KAMlat) PLON = seq(from=KAMlon[1], to=KAMlon[2], by=2) PLAT = seq(from=KAMlat[1], to=KAMlat[2], by=2) proj = setPROJ(1, LON0=mean(KAMlon), LAT0=mean(KAMlat)) xy = GLOB.XY(KAMlat, KAMlon , proj) kbox=list(x=range(xy$x, na.rm=TRUE), y=range(xy$y, na.rm=TRUE)) plot(kbox$x,kbox$y, type='n', axes=FALSE, xlab="", ylab="", asp=1) #plotGEOmapXY(worldmap, LIM=c(KAMlon[1], KAMlat[1], KAMlon[2],KAMlat[2]), add=TRUE, PROJ=proj, axes=FALSE, xlab="", ylab="" ) mmm <- my.plotGEOmapXY(worldmap, LIM=c(KAMlon[1], KAMlat[1], KAMlon[2],KAMlat[2]), add=TRUE, PROJ=proj, axes=FALSE, xlab="", ylab="" ) dev.new() plot(mmm,cex=0.01,axes=FALSE, xlab="", ylab="", asp=1) # 点が粗いので、補間する(興味のある日本部分に絞ったうえで) K <- 20 mmm.2 <- matrix(0,0,2) for(i in 300:length(mmm[,1])){ mmm.2 <- rbind(mmm.2,cbind(seq(from=mmm[i-1,1],to=mmm[i,1],length=K),seq(from=mmm[i-1,2],to=mmm[i,2],length=K))) } X <- as.matrix(seyana.coords) # 標本の地図上座標でドロネー三角 library(geometry) delaunay.X <- delaunayn(X) plot(X) delaunay.X.2 <- rbind(delaunay.X[,1:2],delaunay.X[,2:3],delaunay.X[,c(3,1)]) segments(X[delaunay.X.2[,1],1],X[delaunay.X.2[,1],2],X[delaunay.X.2[,2],1],X[delaunay.X.2[,2],2]) # 標本の属性距離を求めて D <- as.matrix(dist(seyana.data.1)) # MDSで二次元座標にする X.. <- cmdscale(D) plot(X..) xx <- mmm.2 # 三角形の内部であることの確認をする関数 judge.inside.2 <- function(x,V){ n <- length(x) K <- matrix(V[1:n,],ncol=n) K. <- t(K)-V[n+1,] tmp <- solve(K.,x-V[n+1,]) c(tmp,1-sum(tmp)) #all(tmp>=0 & sum(tmp)<=1) } # 標本点の真座標に基づいて補間座標を出す new.xx <- matrix(NA,length(xx[,1]),length(xx[1,])) # すべてのドロネー三角ごとにループする for(i in 1:length(delaunay.X[,1])){ tmp.v <- delaunay.X[i,] V <- X[tmp.v,] # 扱っているドロネー三角の内部の点を確認 tmp <- t(apply(xx,1,judge.inside.2,V)) tmp.more.0 <- apply(tmp>=0,1,all) #tmp.less.1 <- (apply(tmp,1,sum)) <= 1 #insiders <- which(tmp.more.0 & tmp.less.1) insiders <- which(tmp.more.0) # 内部点の座標を線形補間 if(length(insiders) > 0){ new.xx[insiders,] <- tmp[insiders,] %*% X..[tmp.v,] } } name.city <- c("台中","中国","盛岡","因島","奈良","高槻","大阪","吹田","善通寺","福山","福岡","青山","洗足","松山","宮城") xlim <- ylim <- range(c(xx)) #col <- rgb((mmm[,1]-min(mmm[,1]))/(max(mmm[,1])-min(mmm[,1])),(mmm[,2]-min(mmm[,2]))/(max(mmm[,2])-min(mmm[,2])),1) col <- rainbow(length(mmm.2[,1])) #col <- rgb((1:length(mmm.2[,1]))/length(mmm.2[,1]),(length(mmm.2[,1]):1)/length(mmm.2[,1]),1) x.diff <- max(X[,1])-min(X[,1]) y.diff <- max(X[,2])-min(X[,2]) x.mean <- mean(range(X[,1])) y.mean <- mean(range(X[,2])) xlim <- c(-0.5,0.5)*max(x.diff,y.diff)+x.mean ylim <- c(-0.5,0.5)*max(x.diff,y.diff)+y.mean plot(xx,pch=20,cex=0.01,col=col,xlim=xlim,ylim=ylim) points(X,pch=20,cex=1,col=1:length(X[,1])) #text(X+10,name.city,cex=0.8) dev.new() x.diff <- max(X..[,1])-min(X..[,1]) y.diff <- max(X..[,2])-min(X..[,2]) x.mean <- mean(range(X..[,1])) y.mean <- mean(range(X..[,2])) xlim <- c(-0.5,0.5)*max(x.diff,y.diff)+x.mean ylim <- c(-0.5,0.5)*max(x.diff,y.diff)+y.mean plot(new.xx,pch=20,cex=0.01,col=col,xlim=xlim,ylim=ylim) points(X..,pch=20,cex=1,col=1:length(X..[,1])) #text(X..+10,name.city,cex=0.8)
